Dimension's multi-fiber polarity insertion loss and return loss tester is a favored innovative solution among industry clients. Building on this foundation, we have upgraded and iterated to provide a one-stop FA/JUMPER test solution.

This solution accommodates testing FA devices with different branch counts and angles, enabling quick tests of IL, RL, and polarity, thus enhancing production inspection efficiency.

Main advantages

·Support SM/MM FA test
·Customized wavelength
·IL,RL,Polarity three in one
·Special mode for FA, higher accuracy for RL
·Patented visual detection polarity
·Rich FA fixture, interface, easy to replace
·Optional external PD for muti-branch FA/Z-BLOCK
·Can be upgraded in the existingpolarity insertion loss meter
·Integratingball can be customized to test 2000+ core number FA

1.

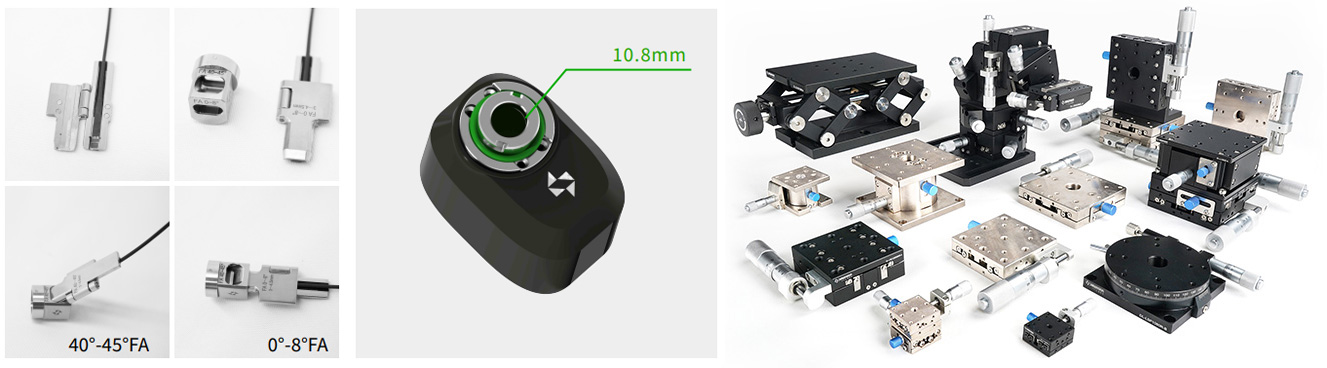

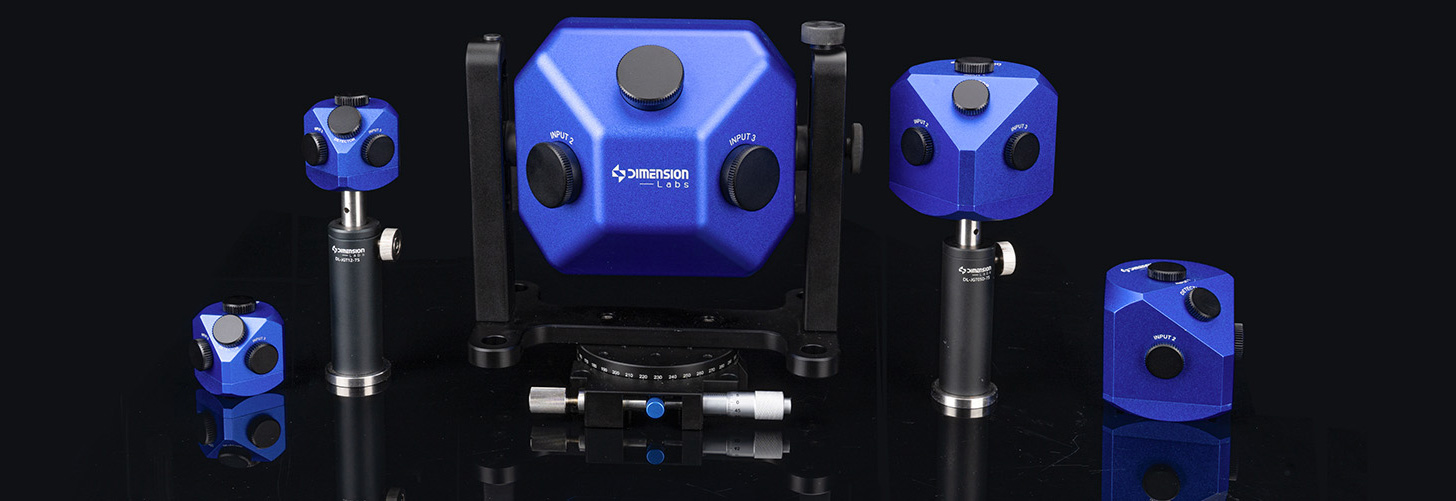

Rich interface design, stable clamping, multi-dimensional optical parts fine tuning

FA/JUMPER

Dimension's clamp and interface design ensures quick, stable operation, prevents scratches, and reduces errors.

1）To accommodate wider FA or multiple branch ports, the insertion and return loss meter's integrating sphere

now has a >10mm light entry aperture with a light leakage prevention design.

2）Offers a multi-dimensional adjustable optical platform for simultaneous multi-port testing,

easily adjustable for different devices.

2.

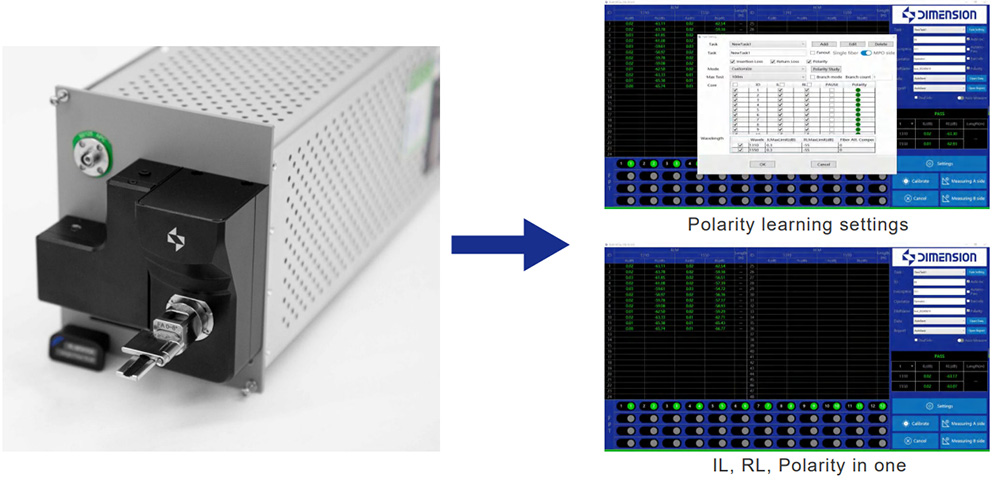

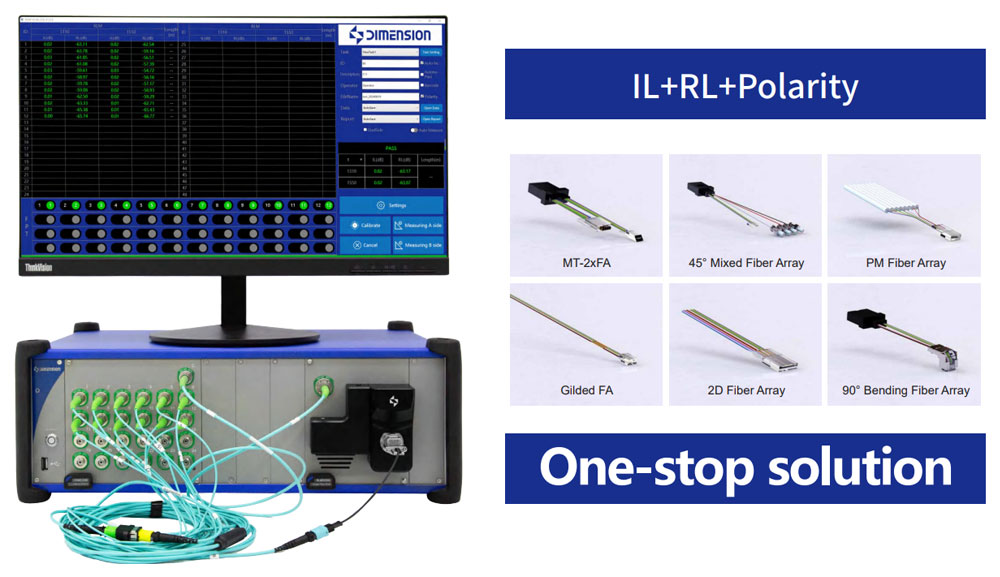

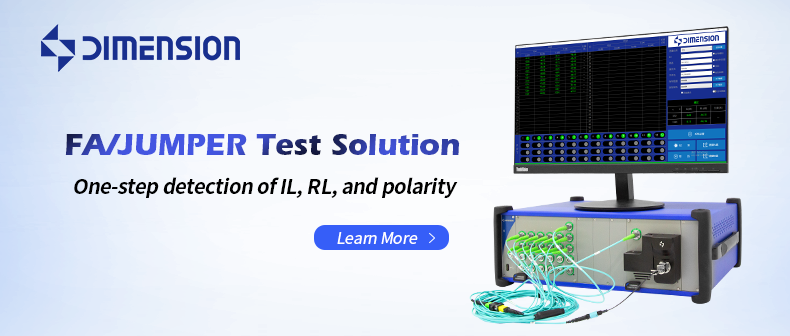

One-step detection of IL, RL, and polarity

FA/JUMPER

FA/JUMPER devices cannot connect to the MPO interface ofpolarity testers, making TOSA/ROSA array testing ineffective.

Dimensiony's patented visual polarity detection solves this problem.

Integrated into the insertion and return loss meter, it enables one-step IL, RL, and polarity testingfor FA/JUMPER devices.

For high-fiber-count arrays (2000+fibers), it uses a high-capacity integrating sphere. For multi-branch FA devices, the softwareintelligently organizes polarity sequences and generates a unified report.

3.

Optimized return loss testingfor FA/JUMPER connectors

FA/JUMPER

Non-wrapped return loss meters, based on OTDR principles, have blind spots when testina uitra-short connectors without special handling.

Wrapped return loss meters using OcWR also fail to test MT-FA device Rx end MT return loss without matching gel.

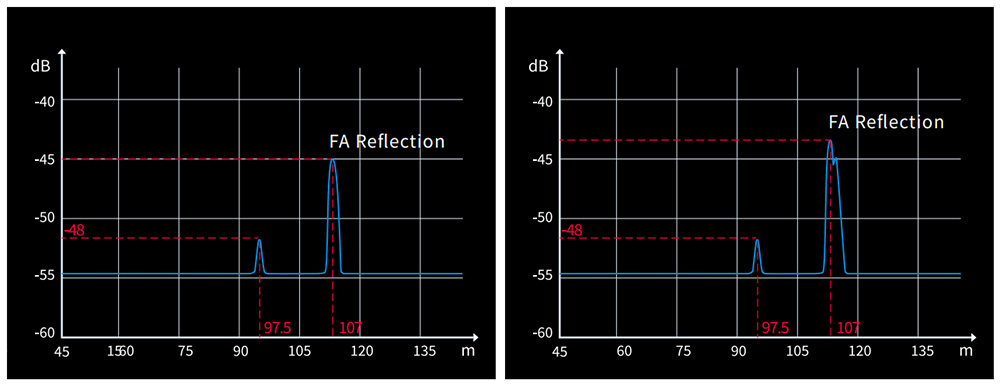

Dimension Technology has optimized the OTDR algorithm for FA-specific scenarios, enabling detection of Rx end MT return loss.

4.

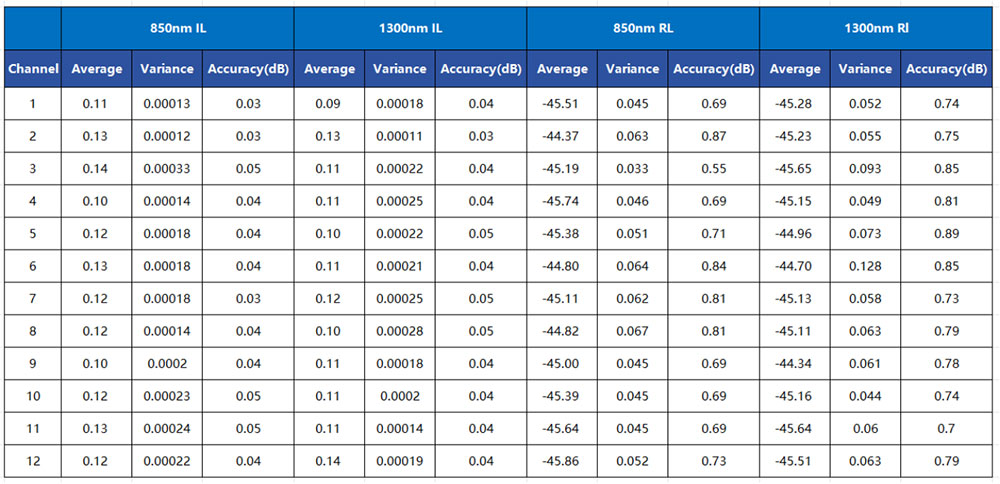

Results stable and accurate

FA/JUMPER

Based on the optimized algorithm of Dimension Technology's multi-core polarity insertion and return loss
meter, the MT end return loss test results are stable and accurate when using matchinggel.

Dimension's FA/JUMPER test solution features a versatile and customizable software, supporting databases.

It can test Tx-end IL, ISO isolation, and Rx-end IL, RL. With a full-platform architecture, it can be integrated with Dimension's end-face inspection and interferometer testing.

For more details, please contact us!
